Okuma TWIN STAR LT Series Repair & Support

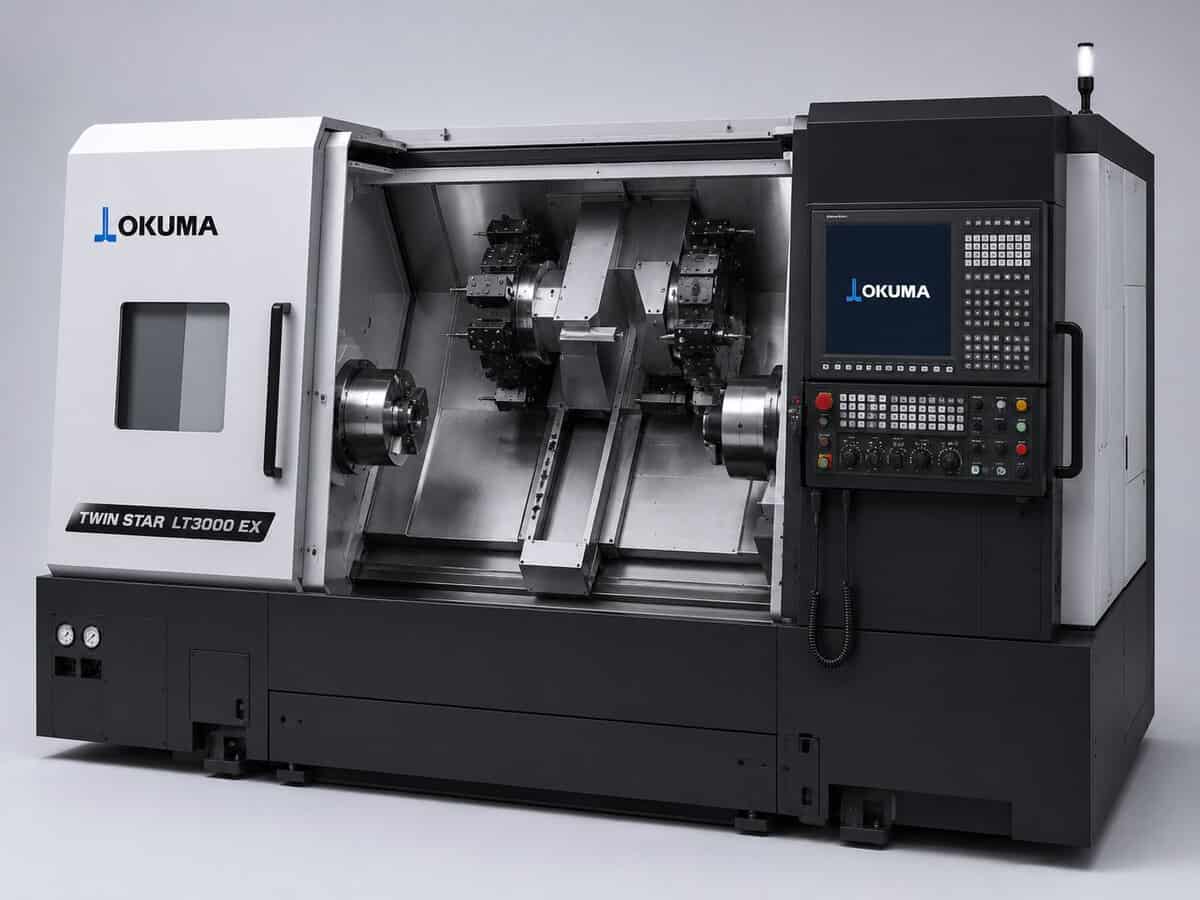

TWIN STAR LT Series Models & Specifications

Both current LT Series models share the same twin-spindle, twin/triple-turret architecture, scaled to two different chuck classes.

Which OSP Control Does the TWIN STAR LT Series Use?

Current LT2000 EX and LT3000 EX machines run Okuma’s open-architecture, PC-based OSP-P300 control, specifically the OSP-P300LA variant with a 15-inch color TFT display. Built around Okuma’s “Easy Operation” concept, the control groups commonly used twin-spindle and twin-turret processes together — a deliberate design choice given how much more complex programming a twin-spindle, multi-turret machine is compared with a standard single-turret lathe.

Because the LT Series’ twin-spindle geometry-flip and collision-avoidance logic run inside the OSP control itself, board-level faults here can affect production in ways that go beyond a typical control fault — which is exactly why correctly diagnosing whether an issue sits in the control, the drive, or the mechanical transfer system matters more on this platform than on a simpler lathe. A control fault that only affects the transfer logic, for example, can look identical from the operator’s seat to a mechanical fault in the transfer mechanism itself, and getting that distinction right the first time avoids paying for parts that were never actually broken.

Common TWIN STAR LT Series Faults We Repair

The LT Series’ twin-spindle part-transfer and multi-turret design create fault patterns you simply don’t see on single-spindle Okuma lathes.

Spindle transfer and torque synchronization faults

Faults during the left-to-right part transfer — dropped parts, transfer timing errors, or torque-skip alarms during the handoff — are the most distinctive LT Series issue we see. These almost always trace back to a drive or feedback fault on one of the two spindles rather than a problem with the transfer logic itself, since the synchronization program running in the OSP control is rarely the actual point of failure. A shop that hasn’t worked with a twin-spindle machine before will often assume the fault is in the “handshake” between spindles, when in practice it’s usually a conventional drive or encoder fault on whichever spindle is misbehaving.

Collision Avoidance System faults

Nuisance trips or false collision alarms from the Collision Avoidance System usually point to a position-feedback discrepancy on one of the turrets rather than a genuine collision risk — but because this system is a genuine safety feature, we never simply disable or bypass it; we trace the underlying feedback fault so the system keeps working as designed.

Turret indexing faults across 2 or 3 turrets

With up to three turrets, each capable of working with either spindle, indexing faults need to be isolated to the correct turret before any repair starts. On 3-turret machines especially, we’ve seen shops assume a fault affects the whole machine when it’s actually isolated to a single turret’s drive electronics.

Left and right spindle drive faults

Because the main and sub-spindle have different power ratings and operate independently, drive faults on the two sides present differently — a fault on the lower-powered sub-spindle drive can look like a transfer problem if you’re not checking each spindle’s electronics separately from the start.

Display and operator panel faults

The 15-inch color TFT display on OSP-P300LA machines is a common repair item on higher-hour machines — usually a backlight or panel issue rather than a deeper control fault.

Given how much diagnostic complexity the twin-spindle, multi-turret design adds, we lean heavily on the OSP alarm history to isolate exactly which spindle, turret or transfer stage is at fault before opening anything up. See our fault analysis and testing & diagnostics services for more on our approach.

Where We Support TWIN STAR LT Series Machines

CNC Elektronik is based in Germany, where most of our TWIN STAR LT Series repair work is carried out — either on the bench once a control board or drive has been shipped to us, or on-site when a machine can’t be moved.

We’ve also supported LT Series repair work in Brazil, where twin-spindle turning centers are increasingly common in automotive component manufacturing that needs complete, front-to-back parts without secondary operations. The repair process is the same regardless of distance: isolate which spindle, turret or transfer stage is at fault, repair or replace the failed component, and confirm the machine under real production load before it returns to service. For a machine running two spindles and multiple turrets, we find that clients place particular value on getting a clear, specific diagnosis before any parts are ordered, since a wrong guess on this platform can be an expensive one.

See our Countries We Serve page for our full regional coverage across Europe, the Americas, and parts of Asia and the Middle East.
